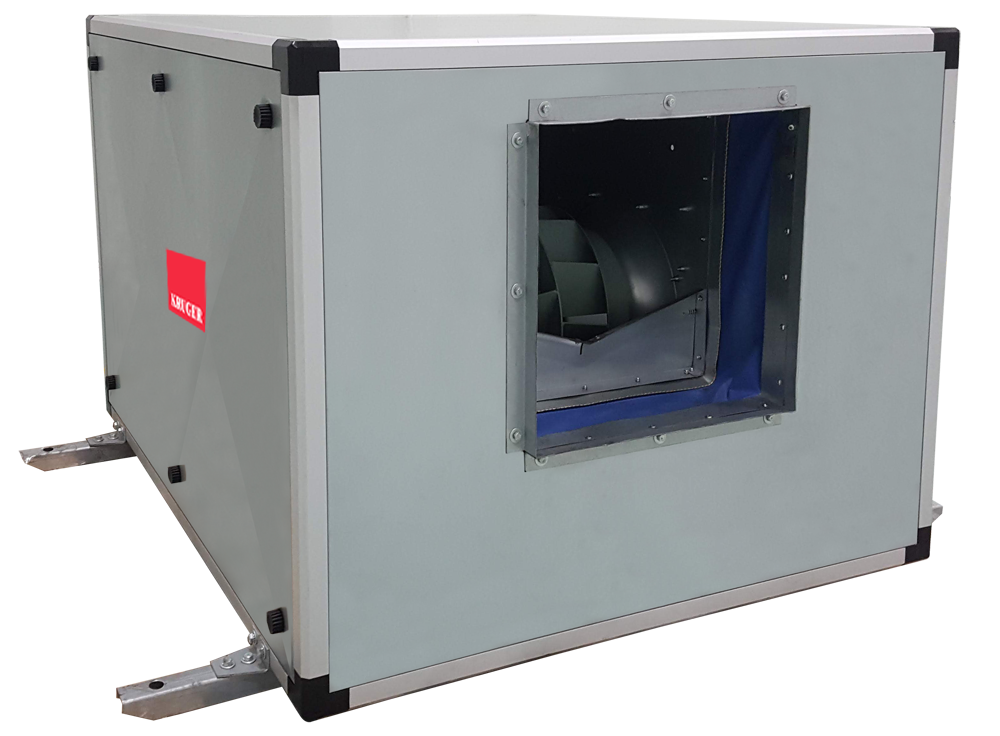

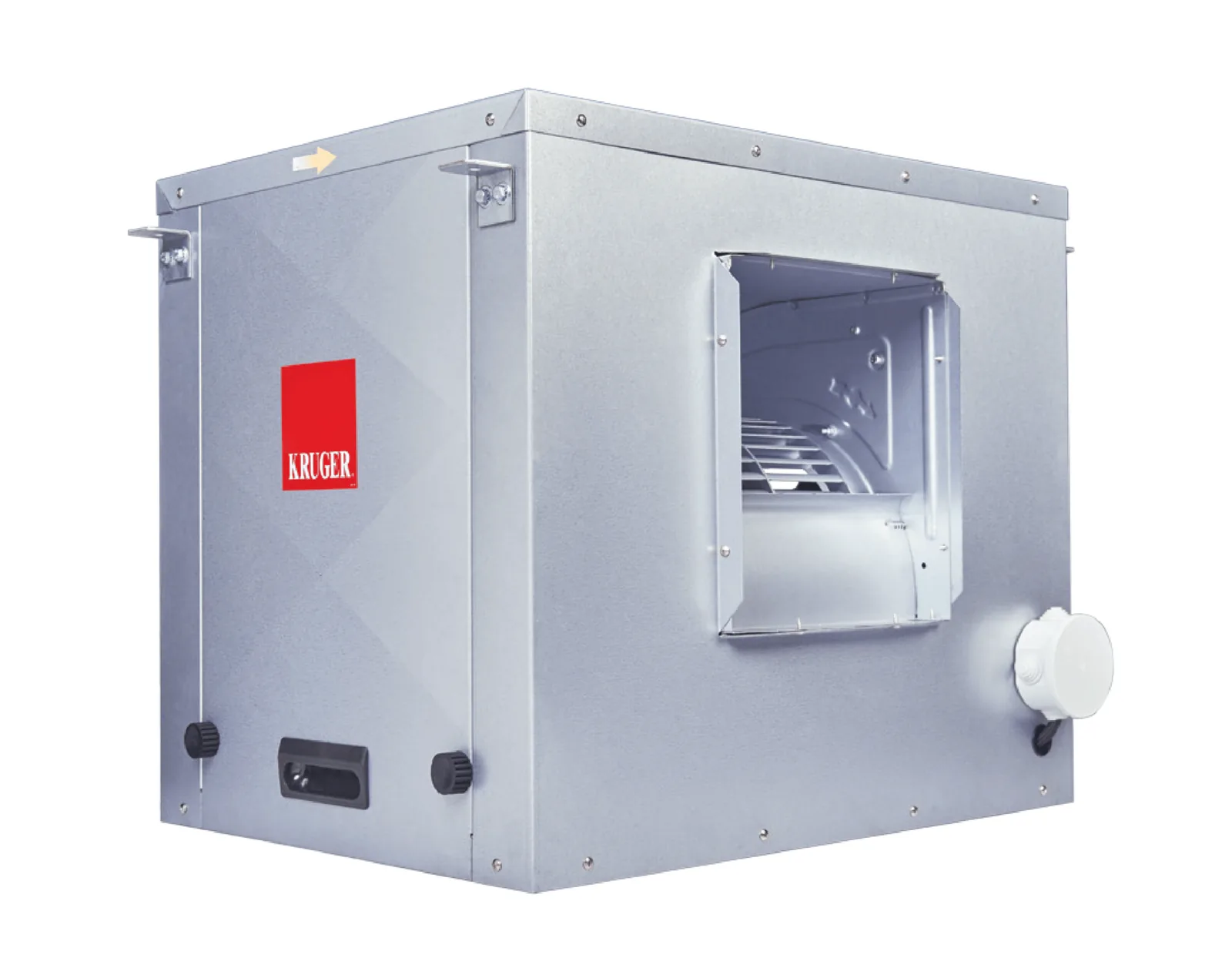

CFQ-B Series - In-Line Fan - Belt Driven

Name: CFQ-B Series - In-Line Fan - Belt Driven
Brand: Kruger

ข้อมูลสินค้าอุตสาหกรรมจาก Nam Sae Trading

ยี่ห้อ: Kruger

CFQ-B Series - In-Line Fan - Belt Driven — Kruger Fan

สเปกและข้อมูลทางเทคนิค

Specifications Quick Facts • Forward/backward curved or airfoil wheel • Size from 200 to 1000 • Capacity up to 120,000 m3/h • Static pressure up to 1800 Pa • Acoustic lining is available upon request Construction • Cabinet is manufactured in galvanized sheet steel incorporated with a belt driven, high efficiency, double inlet, backward curved wheel. • Complete with inlet & outlet flange as standard. • Motor and drive assembly can be accessed through removal of two side panels. • Internal vibration isolator to assure long life and quiet operation. • Penta Post construction with ABS plastic corner piece, aluminum column and reinforced galvanized sheet panel.
