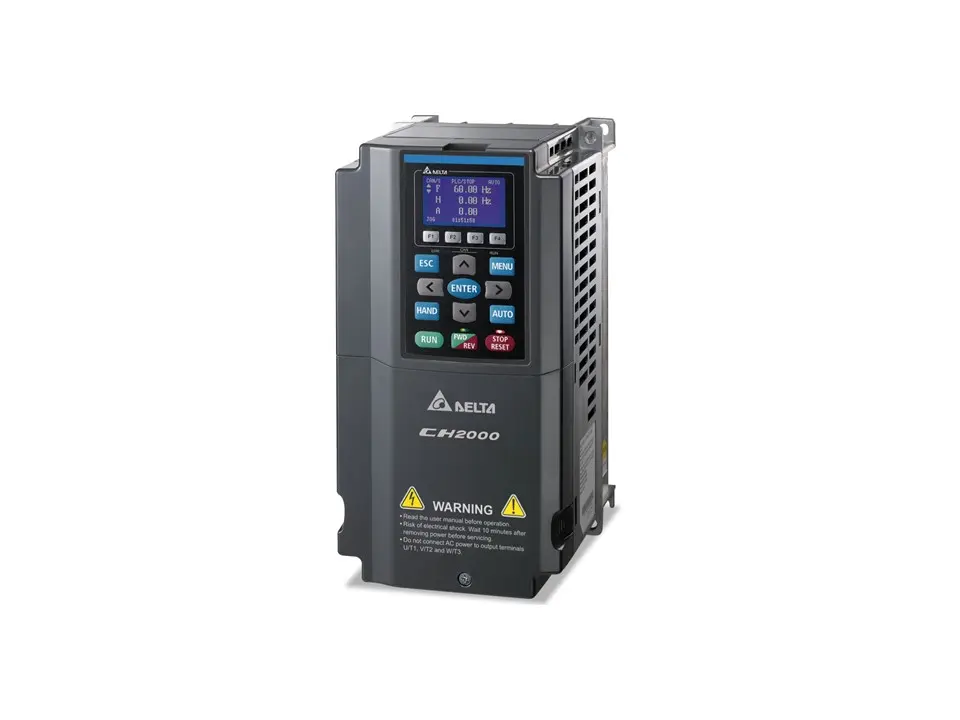

CH2000
Using new drive technology, Delta presents you with its next generation CH2000 Series AC Motor Drive. Providing high performance with robust design the CH2000 is equipped with a larger starting torque and high overload capability to fulfill the needs of heavy load and impact loading applications.
สเปกและข้อมูลทางเทคนิค
Super Heavy Load (SHD) • Overload ability: rated current of 150% up to 60 seconds, 200% up to 3 seconds • Starting torque: above 200% at 0.5Hz in normal conditions, up to 200% at 0Hz in FOC+PG mode • Output frequency: 0.00~600.00Hz (for model above 90kW: 0.00~400Hz) • Induction motor and synchronous motor control • Built-in PLC program capacity: 10K steps • Noise reduction Frame A Frame B Frame C Model spec Model spec Model spec VFD007CH23A-21 220V 3Phase 0.7kW 1Hp VFD055CH23A-21 220V 3Phase 5.5kW 7.5Hp VFD150CH23A-21 220V 3Phase 15kW 20Hp VFD015CH23A-21 220V 3Phase 1.5kW 2Hp VFD075CH23A-21 220V 3Phase 7.5kW 10Hp VFD185CH23A-21 220V 3Phase 18.5kW 25Hp VFD022CH23A-21 220V 3Phase 2.2kW 3Hp VFD110CH23A-21 220V 3Phase 11kW 15Hp VFD185CH43A-21 400V 3Phase 18.5kW 25Hp VFD037CH23A-21 220V 3Phase 3.7kW 5Hp VFD075CH43A-21 400V 3Phase 7.5kW 10Hp VFD220CH43A-21 400V 3Phase 22kW 30Hp VFD007CH43A-21 400V 3Phase 0.7kW 1Hp VFD110CH43A-21 400V 3Phase 11kW 15Hp VFD300CH43A-21 400V 3Phase 30kW 40Hp VFD015CH43A-21 400V 3Phase 1.5kW 2Hp VFD150CH43A-21 400V 3Phase 15kW 20Hp VFD185CH4EA-21 400V 3Phase 18.5kW 25Hp VFD022CH43A-21 400V 3Phase 2.2kW 3Hp VFD075CH4EA-21 400V 3Phase 7.5kW 10Hp VFD220CH4EA-21 400V 3Phase 22kW 30Hp VFD037CH43A-21 400V 3Phase 3.7kW 5Hp VFD110CH4EA-21 400V 3Phase 11kW 15Hp VFD300CH4EA-21 400V 3Phase 30kW 40Hp VFD055CH43A-21 400V 3Phase 5.5kW 7.5Hp VFD150CH4EA-21 400V 3Phase 15kW 20Hp VFD007CH4EA-21 400V 3Phase 0.7kW 1Hp VFD015CH4EA-21 400V 3Phase 1.5kW 2Hp VFD022CH4EA-21 400V 3Phase 2.2kW 3Hp VFD037CH4EA-21 400V 3Phase 3.7kW 5Hp VFD055CH4EA-21 400V 3Phase 5.5kW 7.5Hp Frame D Frame E Frame F Model spec Model spec Model spec VFD220CH23A-00 220V 3Phase 22kW 30Hp VFD450CH23A-00 220V 3Phase 45kW 60Hp VFD750CH23A-00 220V 3Phase 75kW 100Hp VFD300CH23A-00 220V 3Phase 30kW 40Hp VFD550CH23A-00 220V 3Phase 55kW 75Hp VFD1320CH43A-00 400V 3Phase 132kW 175Hp VFD370CH23A-00 220V 3Phase 37kW 50Hp VFD900CH43A-00 400V 3Phase 90kW 120Hp VFD750CH23A-21 220V 3Phase 75kW 100Hp VFD450CH43A-00 400V 3Phase 45kW 60Hp VFD1100CH43A-00 400V 3Phase 110kW 150Hp VFD1320CH43A-21 400V 3Phase 132kW 175Hp VFD550CH43A-00 400V 3Phase 55kW 75Hp VFD450CH23A-21 220V 3Phase 45kW 60Hp VFD750CH43A-00 400V 3Phase 75kW 100Hp VFD550CH23A-21 220V 3Phase 55kW 75Hp VFD220CH23A-21 220V 3Phase 22kW 30Hp VFD900CH43A-21 400V 3Phase 90kW 120Hp VFD300CH23A-21 220V 3Phase 30kW 40Hp VFD1100CH43A-21 400V 3Phase 110kW 150Hp VFD370CH23A-21 220V 3Phase 37kW 50Hp VFD450CH43A-21 400V 3Phase 45kW 60Hp VFD550CH43A-21 400V 3Phase 55kW 75Hp VFD750CH43A21 400V 3Phase 75kW 100Hp VFD370CH43S-21 400V 3Phase 37kW 50Hp Frame G Frame H Model spec Model spec VFD1600CH43A-00 400V 3Phase 160kW 215Hp VFD2800CH43A-00 400V 3Phase 280kW 375Hp VFD1850CH43A-00 400V 3Phase 185kW 250Hp VFD2800CH43C-00 400V 3Phase 280kW 375Hp VFD2200CH43A-00 400V 3Phase 220kW 300Hp VFD2800CH43C-21 400V 3Phase 280kW 375Hp VFD1600CH43A-21 400V 3Phase 160kW 215Hp VFD1850CH43A-21 400V 3Phase 185kW 250Hp VFD2200CH43A-21 400V 3Phase 220kW 300Hp
