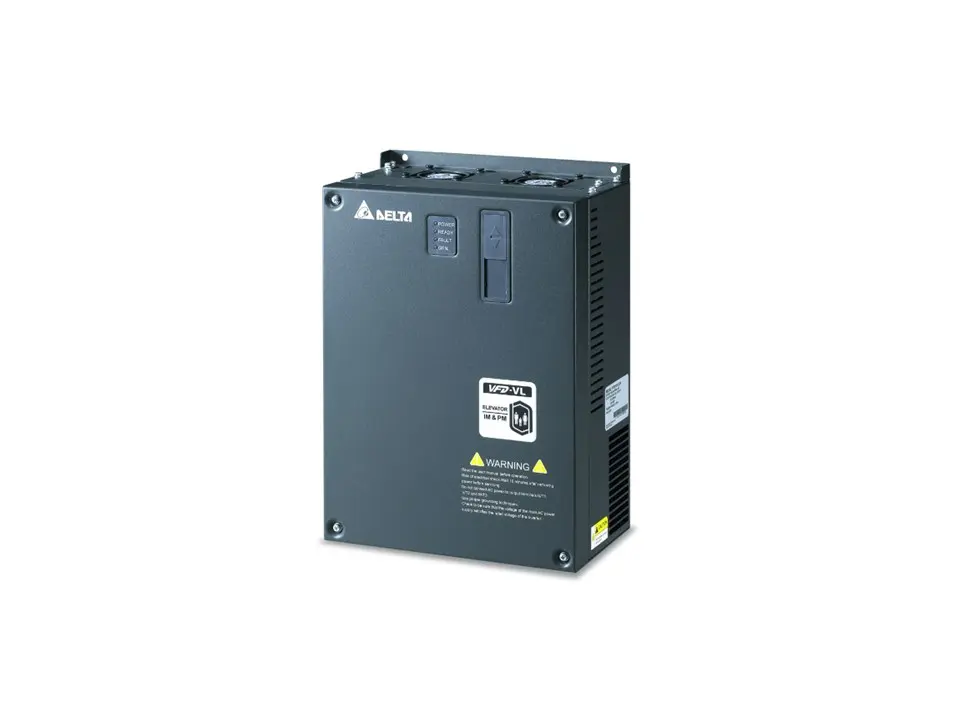

VFD-VL

Delta's VFD-VL series AC motor drive designed for elevators are based on years' of experiences in designing AC motor drives, and the latest control technology adopted in VFD-VL will offer you high reliability and safety. All the features of VFD-VL are to meet the needs from the market, e.g. controlling the brake for motors, backup electricity, built-in brake loop, auto-tuning of motor parameters, numerous encoder interfaces, bountiful communication functions and self protection, etc.

สเปกและข้อมูลทางเทคนิค

• Output frequency: 0.00~120.00Hz, offering output torque of more than 150% when at zero speed. • The vector control by FOC, enabling smooth and comfortable operation of the elevator. • S-curve acceleration/deceleration and battery for abnormal power shut-down. • Overload capacity: 150% of rated current for 1 minute and 200% of rated current for 10 seconds • Complied with EN954-1 (safety-relay) standard. • The built-in brake module saves you installation space and cost • Built-in with Modbus/CAN bus communication interface. • With optional LCD digital keypad and PC tuning software. VFD-VL VFD055VL23A VFD110VL43A VFD055VL43A VFD075VL43A VFD075VL23A VFD110VL23A VFD150VL43A VFD185VL43A VFD150VL23A VFD185VL23A VFD220VL43A VFD220VL23A VFD300VL43A VFD370VL43A VFD450VL43A VFD300VL23A VFD370VL23A VFD550VL43A VFD750VL43A
