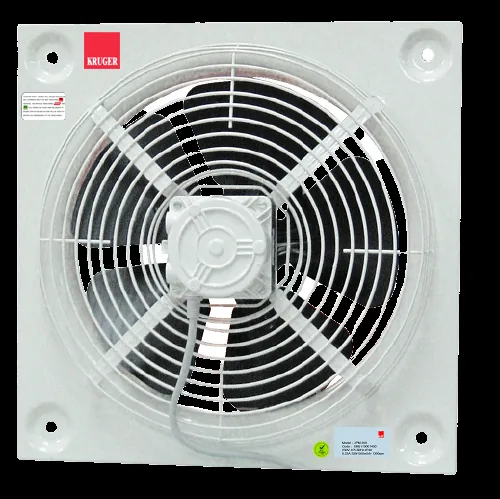

APM Series - Compact Axial Fan
APM Series is designed for direct wall-mounting or panel-mounting. It is s uitable for ventilation application where the extraction of small volume of air at low pressure is required, such as cafes, bars, small restaurants, commercial premises and small workshops.
ยี่ห้อ: Kruger
สเปกและข้อมูลทางเทคนิค
Specifications Quick Facts • Suitable for wall or panel mounting • Size from 200 to 355 mm • Capacities to 1800 m3/h • Easy mounting and compact design Operating Temperature Maximum operating temperature +40degC Motor All models incorporate shaded pole motors with safety thermal overload fuse. Accessories Electrical Accessories Electronic Electronic Single Phase Speed Controllers • Available in Wall Box or Flush Mount versions. • Fuse protected + spare fuses included. • Radio interference protected. • Minimum speed adjustment. • Single ON/OFF and speed regulation control knob. Mounting Accessories Plastic louver back draft shutters • Louvre back-draft shutters manufactured totally from UV stabilized plastic material. Supplied as standard in grey colour. Aluminium louver back draft shutters • Louvre back-draft shutters with a steel frame and aluminium shutter blades. • Frame supplied as standard in grey colour. • All models are fitted with a bird guard. Construction • Complete with one piece bell mouth inlet and mounting plate manufactured from pressed galvanised steel with polyester painting finish. • Fitted with steel finger-proof guard as standard mounted at the inlet side of fan. • 5-bladed impeller manufactured from aluminum finished with epoxy-polyester painting. • Incorporates single phase shaded pole asynchronous induction motor and an auto reset thermal overload protection device. • Supplied with a cable for connection to electrical supply.
